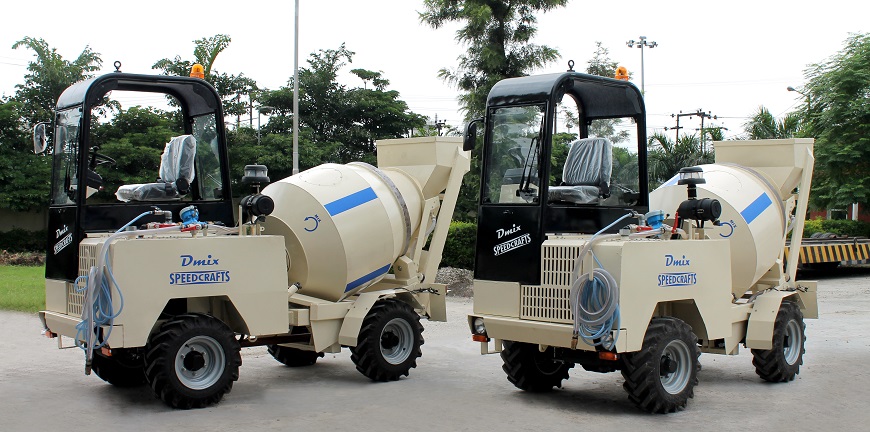

DS 1000

TECHNICAL SPECIFICATION : DS 1000

  • Engine

    Mahindra & Mahindra Model 275 TU water cooled 4 stroke diesel engine 3 cylinder inline - 28.7 kw @ 2600 rpm /39 HP @ 2600 rpm.

  • Transmission

    Hydrostatic 2 speeds, electro hydraulic control for slow and fast speed from 0 to 14 kmph (forward and reverse)

  • Traction

    4 wheel drive

  • Steering

    Hydraulic Power assisted operated through independent gear pump.

  • Differentials

    Totally enclosed oil-bath disc brakes

  • Parking Brake

    Mechanical, hand operated

  • Starting

    Electric 12 V

  • Effective Yield

    1.0 cbm

  • Drum Volume

    1.5 cbm

  • Loading

    Self-loading shovel capacity 150 litres

  • Discharge Concrete

    Rapid discharge of the concrete by hydraulic drum tilting for fast and complete discharge even on inclines.

  • Typical Output

    4 – 5 cbm/hr

  • Adjustment of Drum Rotation

    By hydraulic control, Maximum Drum rotation: 0 - 22 rpm. Infinitely variable for mixing & discharge

  • Water System

    Self-priming pump 180 lt/min and flow meter batching

  • Water Tank

    230 litres

  • Driver Seat

    Reversible 180° with protection roof for complete visibility during driving. The operator can face loading side during weigh batching and discharge operations.

  • Tyres

    10.0 / 75 - 15.3 - 10 PR, Pressure 4 bar

  • Rim Size

    15"

  • Lights Equipment

    Complete with head / tail lights, revolving light and emergency lights.

  • Ground Clearance

    230 mm

  • Articulation Angle

    25° on both side

  • Gradeability

    30°

  • Fuel Tank

    27 litres

  • Hydraulic Tank

    70 litres

  • Net Vehicle Weight

    2510 Kgs

  • Gross Vehicle Weight

    5360 kgs

  • Accessories on Demand

    High pressure washing system | Additional Chute | Electronic batching unit with printer | Fire Extinguisher 1 kg | First aid kit | Emergency triangle |Spare wheel
