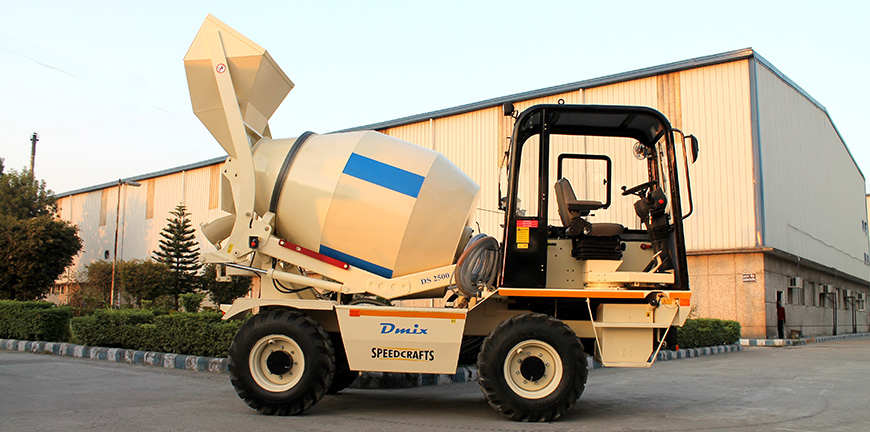

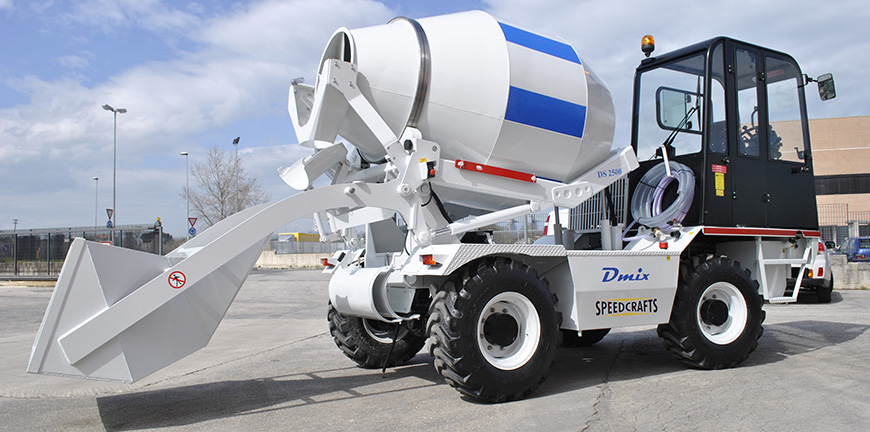

DS 2500

TECHNICAL SPECIFICATION : DS 2500

  • Engine

    Mahindra & Mahindra model 4795 IA intercooler 4 stroke turbo diesel engine 4 cylinder inline - 58 kw @ 2300 rpm /79 HP @ 2300 rpm.

  • Transmission

    Hydrostatic 4 Speeds Automotive, electro hydraulic control for slow & fast speed from 0 to 24 kmph (forward & reverse)

  • Traction

    4 wheel drive

  • Steering

    T- Way system. Four wheel steering for maneuvering in close spaces. Opposite wheels steering for side maneuvering.

  • Differentials

    Totally enclosed oil-bath disc brakes

  • Parking Brake

    Mechanical, hand operated

  • Starting

    Electric 12 V

  • Effective Yield

    2.5 cbm

  • Drum Volume

    3.5 cbm

  • Loading

    Self-loading shovel capacity 600 litres.

  • Discharge Concrete

    Rapid discharge of the concrete by hydraulic drum tilting for fast and complete discharge even on inclines.

  • Typical Output

    10 - 12 cbm/hr

  • Adjustment of Drum Rotation

    By hydraulic control, Maximum Drum rotation: 0 - 22 rpm. Infinitely variable for mixing & discharge

  • Water Equipment

    Self-priming pump 220 lt/min and flow meter batching

  • Water Tank

    500 litres.

  • Driver Seat

    Reversible 180° with protection cabin & lockable door. The operator can face loading side during weigh batching and discharge operations.

  • Tyres

    12.5 / 80 - 18 - 16 PR, Pressure 5 bar

  • Rim Size

    18"

  • Lights Equipment

    Complete with head / tail lights, revolving light and emergency lights.

  • Ground Clearance

    330 mm

  • Gradeability

    30°

  • Fuel Tank

    100 litres

  • Hydraulic Tank

    150 litres

  • Net Vehicle Weight

    5350 kgs

  • Gross Vehicle Weight

    11000 kgs

  • Accessories on Demand

    High pressure washing system | Additional Chute | Electronic batching unit with printer | Slewing Drum Arrangement | Fire Extinguisher 1 kg | First aid kit | Emergency triangle | Spare wheel
